COILS
HUBER & RANNER's Finned Coil Heat Exchangers are engineered for optimal energy transfer and long-term reliability. Available in a variety of forms including fluid coils, RAC coils, dry coils, direct expansion (DX) coils, and steam coils, our coils provide efficient heating and cooling for a wide range of HVAC applications. Built with high-quality materials and according to fully customer-specified designs, our coils ensure reliable performance even in the most demanding environments.
Introduction
HUBER & RANNER's Finned Coil Heat Exchangers are designed to maximize energy efficiency and ensure reliable thermal transfer across various HVAC applications. Utilizing advanced finned coil technology, HUBER & RANNER coils optimize heat transfer through increased surface area and optimized coil circuit design, enabling effective heating and cooling with minimal energy consumption.
All coils are constructed with top-grade materials, including copper, aluminum, stainless steel, and optional protective coatings such as Heresite and Blygold for enhanced corrosion resistance. Designed for durability and ease of maintenance, HUBER & RANNER's heat exchangers are built to perform under the most demanding conditions.
Our product range includes:
Fluid Coils
Ideal for water-based heating and cooling applications in AHUs, fan coil units and similar HVAC equipment.
RAC Coils (Run-Around Coil)
Specialized for energy recovery in central air handling systems, allowing waste energy recovery from exhaust air streams. Designed with high counterflow circuitry, these coils can achieve significant temperature change even with minimal driving temperature differential.
Dry Coils
Designed for in-duct applications where precise temperature adjustment is required.
Direct Expansion (DX) Coils
Configurable as evaporator, condenser, or mixed-use, compatible with all major refrigerants.
Steam Coils
High-efficiency steam coils for industrial and large commercial heating applications.
Features
Customizable Configurations
Our coils are fully customizable in size, material, and layout to match specific project requirements.

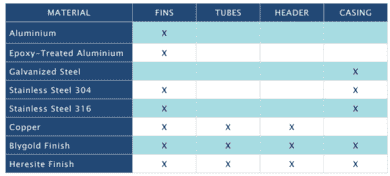

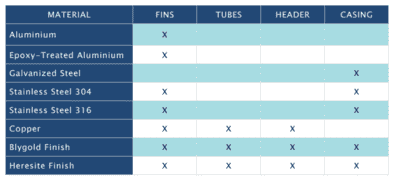

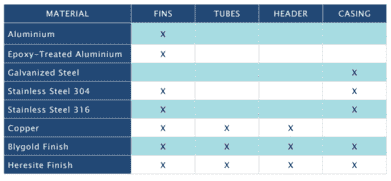

Wide Material Options
Available in copper, aluminum, stainless steel, galvanized steel, with optional coatings such as Heresite and Blygold for enhanced corrosion resistance.
Advanced Anti-Corrosion Protection
Special protective coatings, including Blygold and Heresite, extend service life, even in corrosive or high-humidity environments.
Optimized Circuit Design
Precision-engineered circuit layouts ensure minimal pressure drop and maximized energy recovery.
Technical
Fluid Coils
RAC Coils (Run-Around Coil)
Dry Coils
Direct Expansion (DX) Coils
Steam Coils
